Through beam photoelectric sensor with visible red light
High performance reserve
Small and compact construction with robust plastic housing, protection class IP 67 for industrial application
Fast alignment through brightVision
Push-pull switching outputs
High switching frequency for detection of fast events
Warning output for increased availability

Accessories:

(available separately)

Operating principle: One-way principle

Device type: Transmitter

Operating range: 0.05 ... 8.5 m

Operating range limit: 0.05 ... 10 m

Light source: LED, Red

Supply voltage: 10 ... 30 V, DC

Type of connection: Connector

Thread size: M8

Material: Metal

No. of pins: 4 Piece(s)

Dimension: 11 mm x 32 mm x 17 mm

Housing material: plastic, PC-ABS

Lens cover material: Plastic (PMMA)

Net weight: 10 g

Ambient temperature, operation-25 ... 55 °C

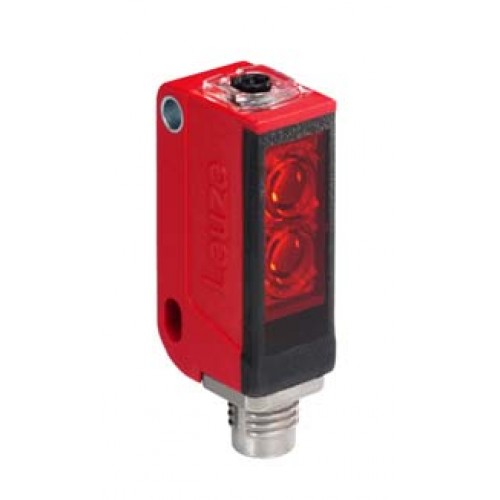

Leuze Throughbeam Photoelectric Sensor Transmitter
