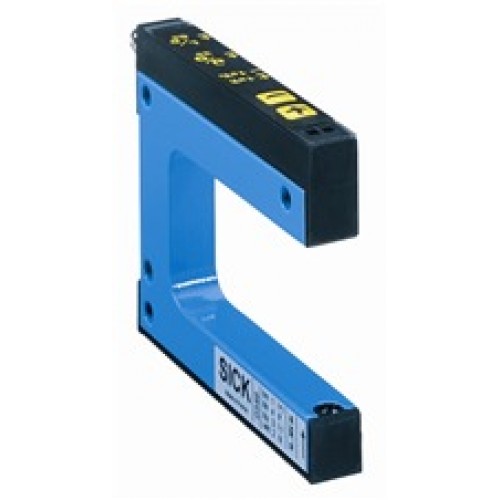

- Functional principle: Optical detection principle
- Fork width: 2 mm
- Fork depth: 42 mm
- MDO : 0.2 mm
- Light source: LED, infrared
- Adjustment: Manual ("+"/"-" button)
- Output function: Light/dark switching, selectable via button
Infrared light source
Simple and accurate adjustment via teach-in or manually via "+"/"-" buttons
Fast response time (max. 100 µs)
NPN switching output only
Light/dark switching function
21 different models with different fork widths and depths
Rugged, IP 65 aluminum housing
Fast response time and fine resolution ensure reliable detection even at high speeds
Infrared light source provides excellent ambient light immunity
User friendly setting via teach-in or "+”/"-” button
